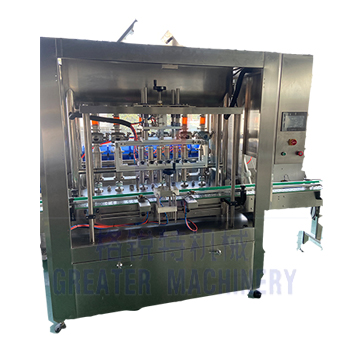

Fully automatic six head servo piston filling machine

一、Product Overview:

 A fully automatic filling equipment suitable for various paste like materials, viscous liquids, and fluids.

二、、 Technical parameters:

Number of filling heads: 6

 Filling capacity: 200-2000 milliliters

Filling form: servo driven piston quantitative

filling Filling head lifting method: stepper motor driven lifting

Filling speed: 1400-1800 bottles/hour

Filling accuracy: ± 1%

Air pressure: 0.5-0.8 MPa

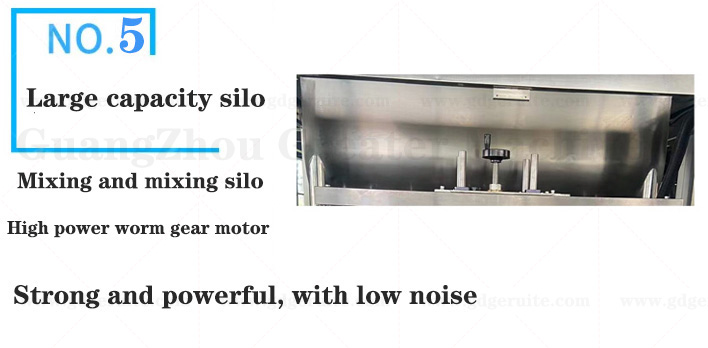

Storage capacity: 210 L

三、、 Machine features:

1. Servo driven filling, high filling accuracy;

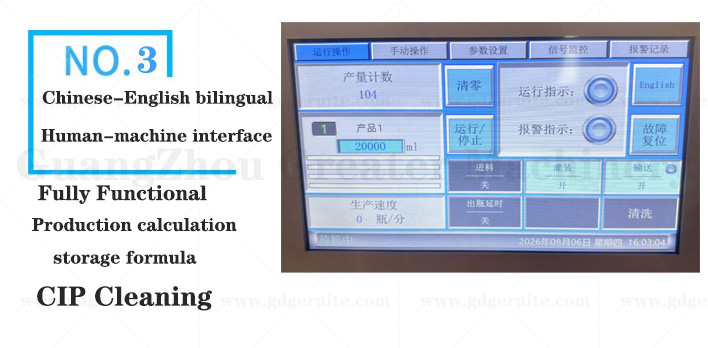

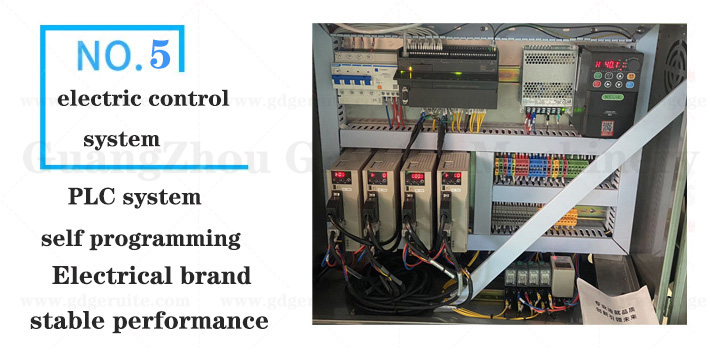

 2. Touch screen and PLC programming control system, easy automatic adjustment operation;

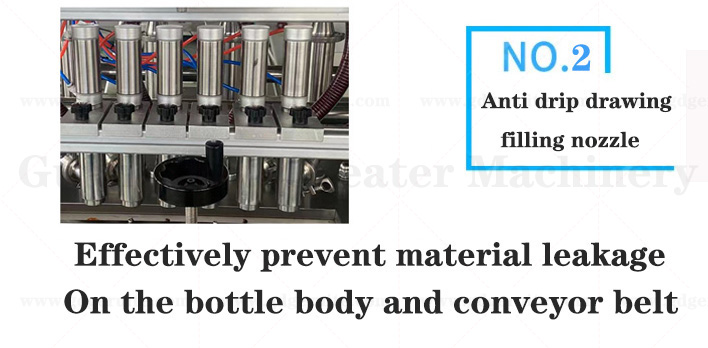

 3. Equipped with a drip proof device for the feeding trough, the feeding trough extends after filling to prevent material leakage from contaminating the product.

4. The filling machine has photoelectric detection, which can identify the number of bottles and achieve no filling without any bottles.

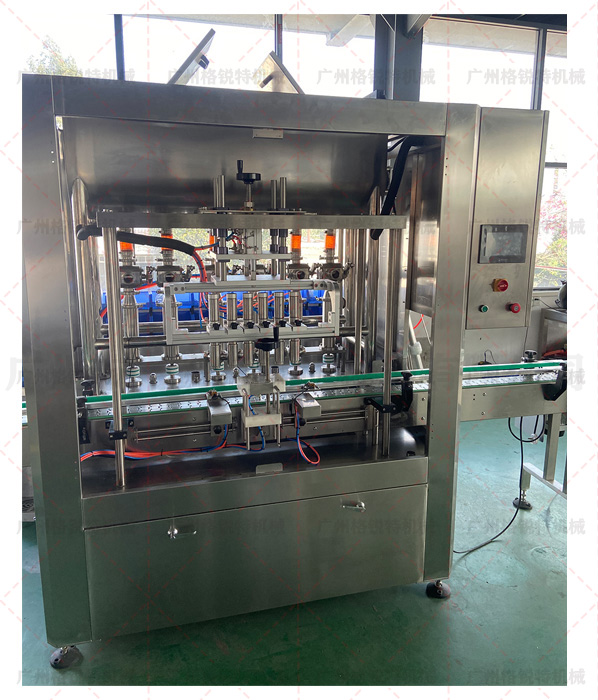

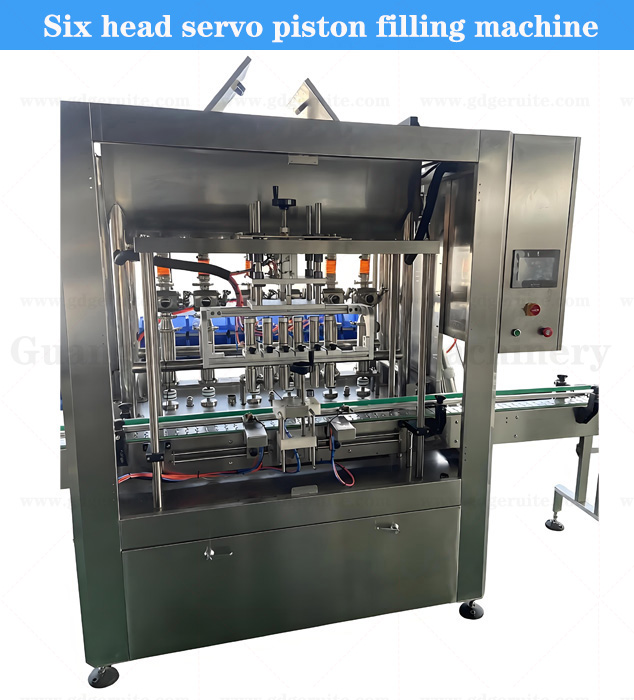

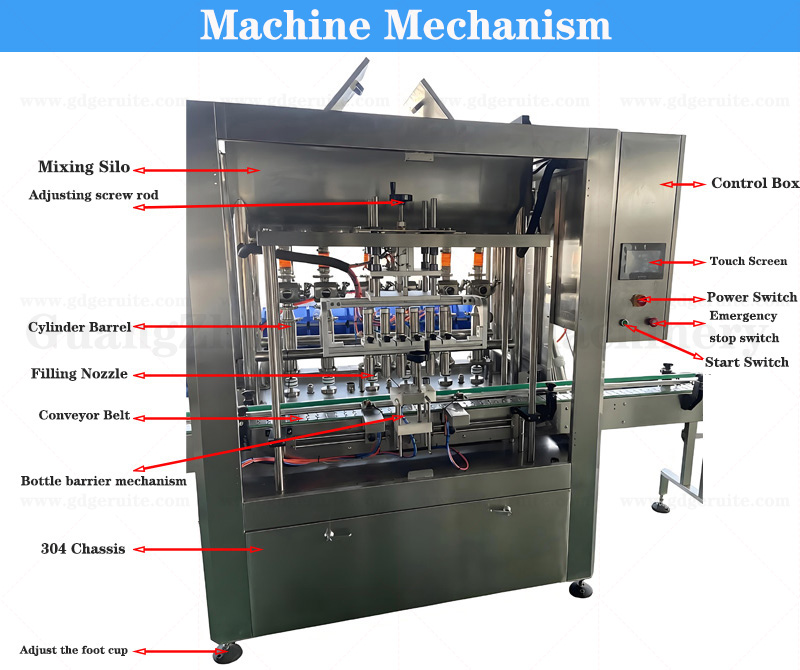

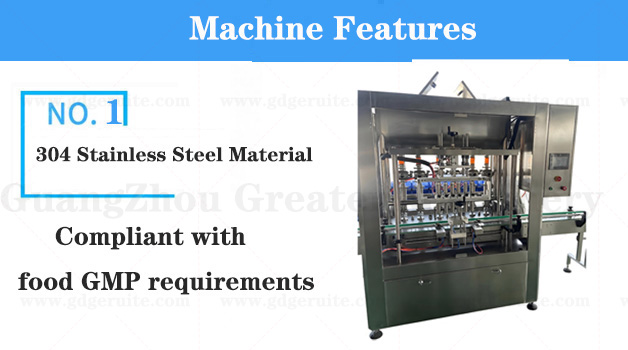

 Fully automatic six head servo piston filling machine display:
