Servo piston filling machine

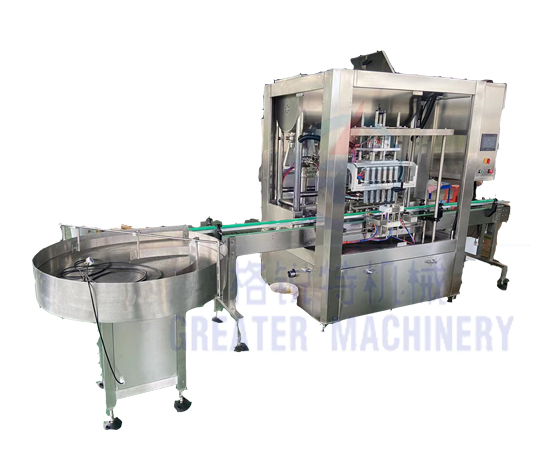

Fully automatic four head servo piston filling machine
一、 Product Overview:
Linear filling machine is a device designed for filling bottled liquid products Various viscous and non viscous liquids such as chili sauce, tomato sauce, jam, honey, etc.
二、Technical parameters ：
Model: GRT-GZ410
Power supply: AC220V
Filling accuracy± 10%
Power: ≤ 3.6 KW
Filling range: 0-700 grams adjustable
Work pressure: 0.8-1.3MPa
Gas consumption: 0.6 cubic meters per hour
Applicable bottle mouth: 30-120mm
Suitable for bottle heights of 40-210mm
Suitable bottle diameter: 30-220mm
Bottle types: round bottle, hexagonal bottle, square bottle, etc
Equipment size: 2000 × 1000 × 2080mm
Weight: 850KG Capacity: 1500-2000 bottles/hour
Conveyor belt: 304 s
tainless steel Material of the whole machine: 304 stainless steel

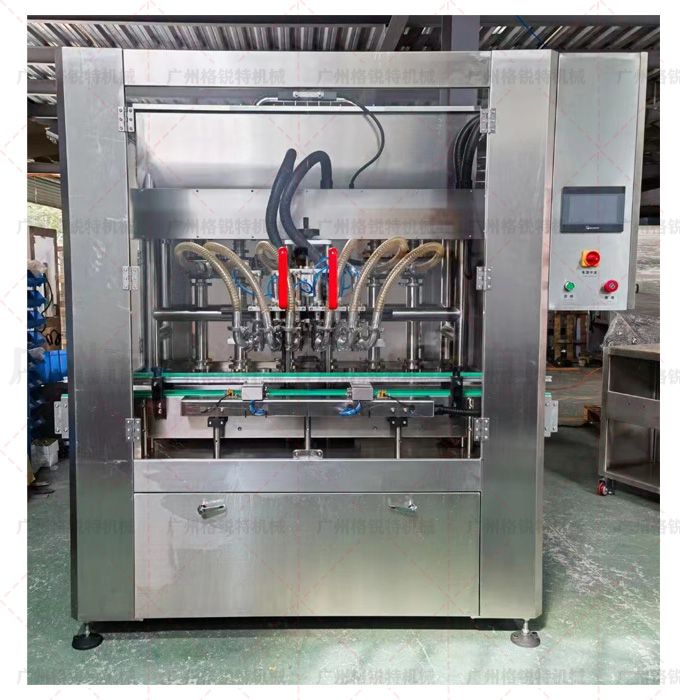

Full automatic four head servo piston filling machine display:
