一、 Product Introduction:

This machine is suitable for various viscous liquids. For example, food filling such as chili sauce, jam, tomato sauce, etc.

二、Technical parameters:

Number of filling heads: Double headed Filling

accuracy: ≤± 1%

Filling speed: 800-1200 bottles/hour

 Filling capacity: 1-5000

grams Power supply: 220/380V 110V 50/60Hz

Air pressure: 0.4-0.6MPa

Machine size: 2200x1000x1800mm

Weight: 480KG

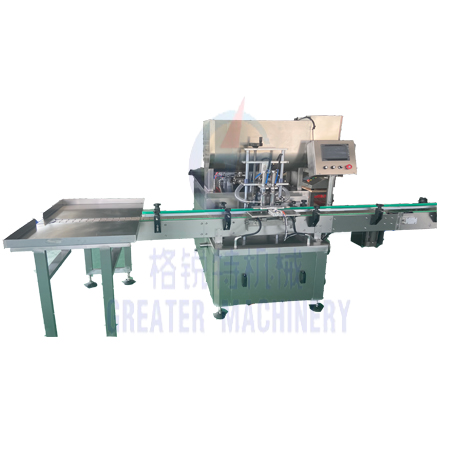

Prototype display of dual head sauce filling machine:

Machine features:

1: Touch screen operating interface

2: Effectively prevent foam

3: Filling accuracy can reach ± 0.1%

4: The filling cylinder has undergone hard chrome treatment and grinding, with a unique filling valve design that does not leak

5: No bottle, no can, automatic shutdown function for bottle accumulation 6: Design different positioning devices based on the actual situation of the bottle. Double head sauce filling machine packaging sample bottle display:
