一、Product Introduction:

Suitable for automatic quantitative filling of granular sauces such as chili sauce, peanut butter, mixed noodle sauce, mushroom sauce, mustard sauce, hot pot base, jam and other viscous sauces, semi-solid sauce products.

二、Detailed parameters:

Number of filling heads: single head Filling

accuracy: ≤± 1%

Filling speed: 500-800 bottles/hour

Filling capacity: 2.5-3KG

Power supply: 220/380V 110V 50/60Hz

Air pressure: 0.4-0.6MPa

Machine size: 2200x1000x1800mm

Weight: 350KG

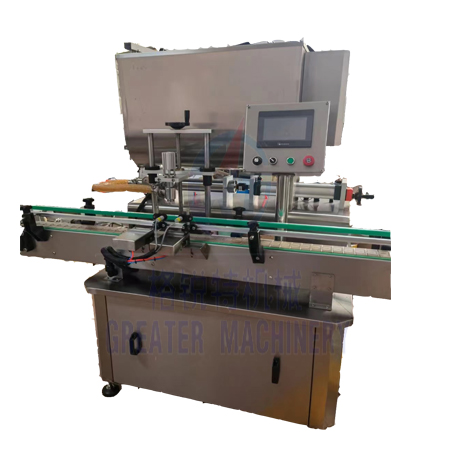

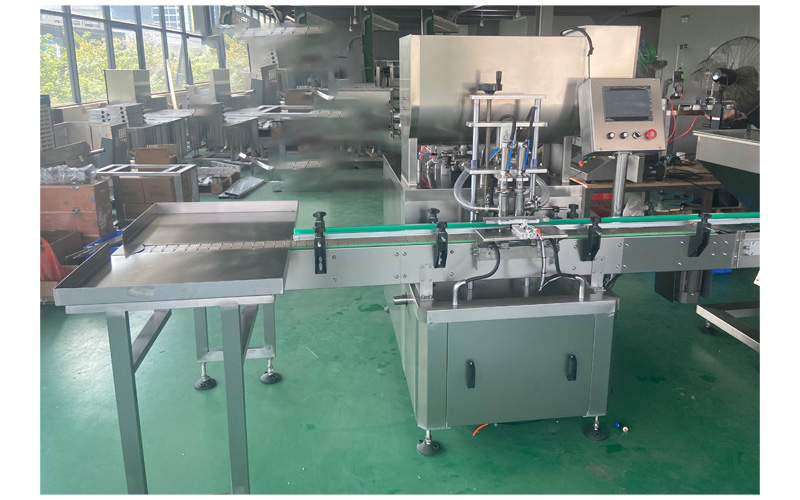

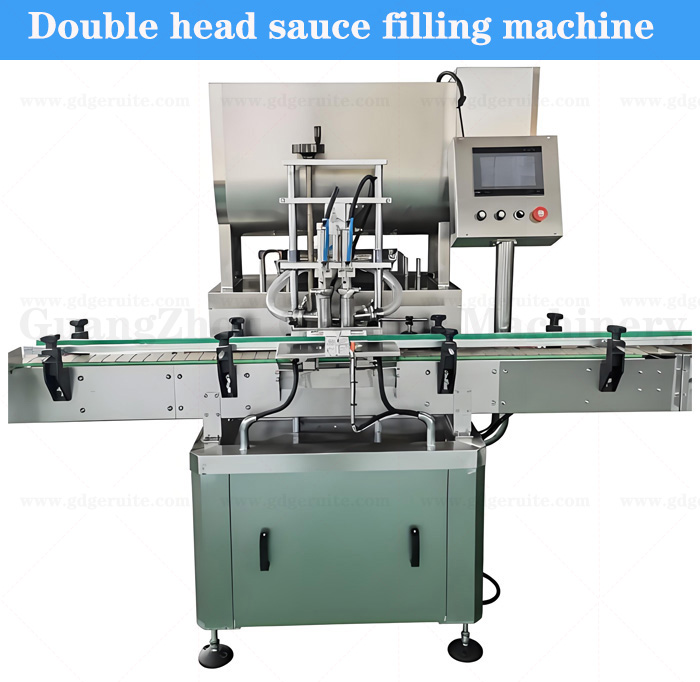

Sauce filling machine display:

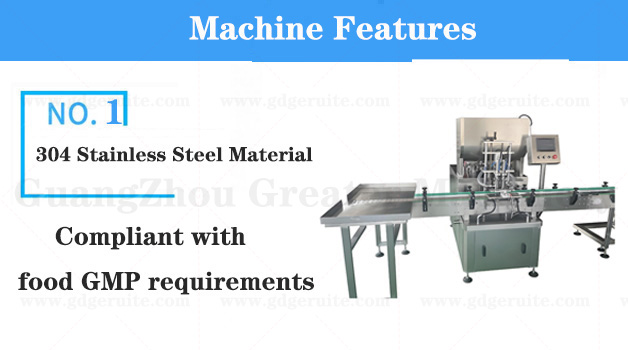

三、machine features:

1. The sauce filling machine has an automatic stirring function, and the spiral stirring makes the material mix more evenly, effectively solving the problem of large measurement errors and uneven filling. 2. The part in contact with the material is made of SUS304 stainless steel material, which meets the requirements of food, medicine, safety and hygiene quality standards. The stainless steel three-way rotary valve is customized according to the specific characteristics of the material, making the feeding smoother. The special anti drip device can effectively avoid wire drawing dripping phenomenon.

3. Equipped with a conveyor chain plate, the automatic positioning, filling and conveying speed can be adjusted. According to actual filling needs, it can be operated as a single machine or matched with an assembly line. The filling methods can be bagged, bottled, canned, etc. to adapt to more forms, and the canning capacity can be adjusted.
