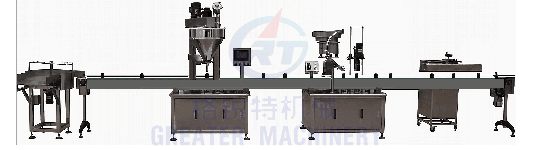

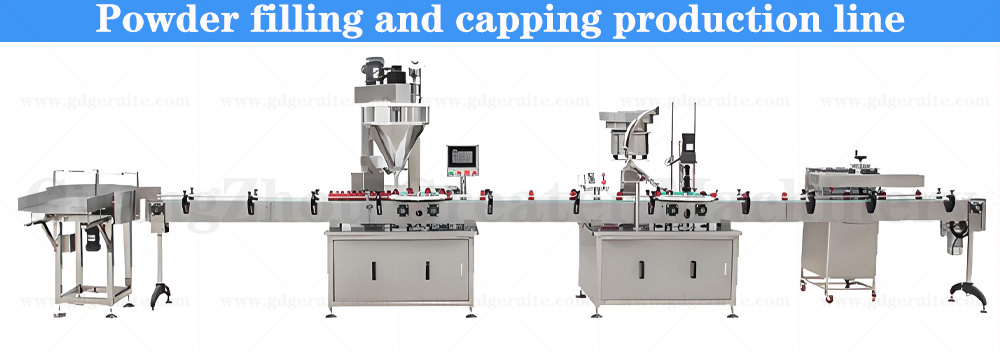

Name：Fully automatic powder filling production line

一 、 Product Introduction:
This machine is mainly suitable for filling 100-400 mesh powder products, such as milk powder, talcum powder, pepper powder, flour and other products.

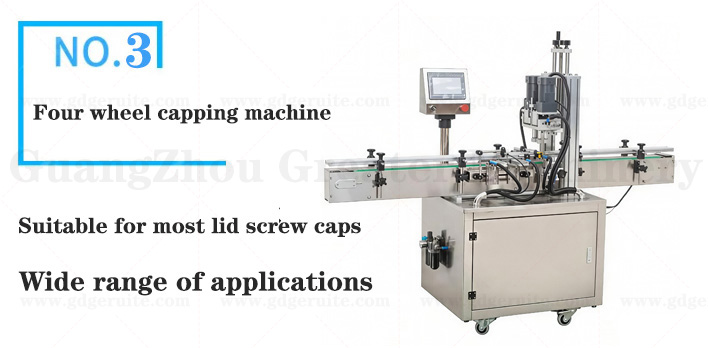

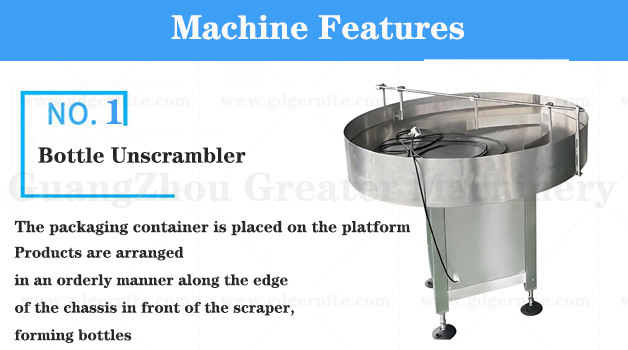

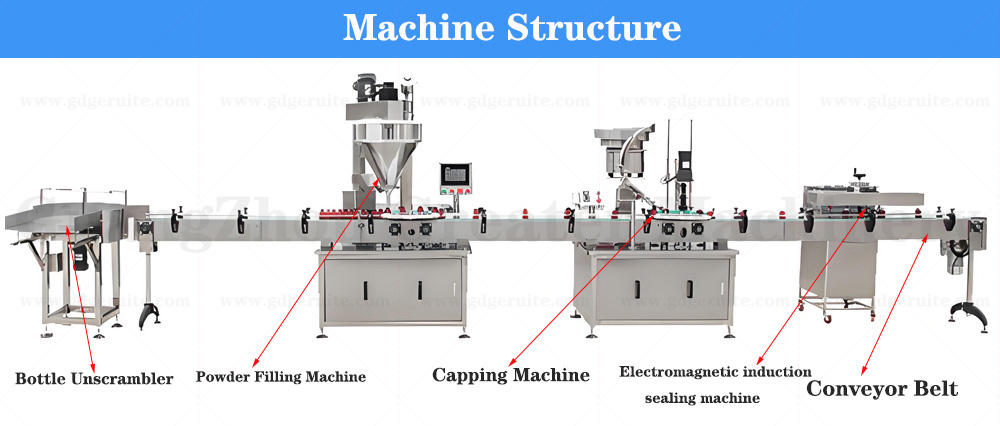

The process flow of this equipment is: bottle sorting - filling - capping - labeling - electromagnetic induction sealing - coding

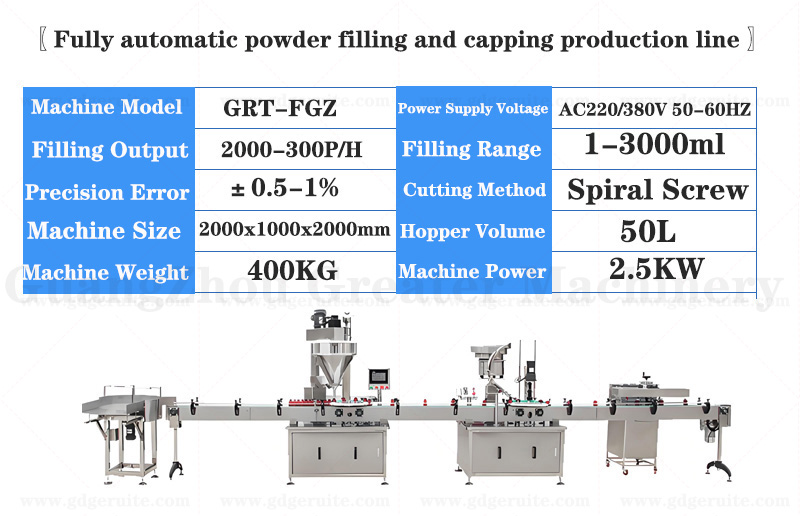

二、 Technical parameters:
Filling capacity: 3-500ml (through adjusting screw)
Labeling standard: ± 1mm
Powder head: 1-2 heads
The label is very small, with a length of 10mm
Production speed: 30-60 B/min
Printing speed: very fast 128 meters per minute (single lane highway)
Filling accuracy: 0.75
Printing distance: 1 millimeter to 25 millimeters
Sealing diameter: Φ 16-60mm (customizable beyond this size)
Printing height: 1mm -15mm (4 lines)
Labeling speed: 3~60m/min
Compressed air: 0.5-0.6MPa
三、Performance characteristics:

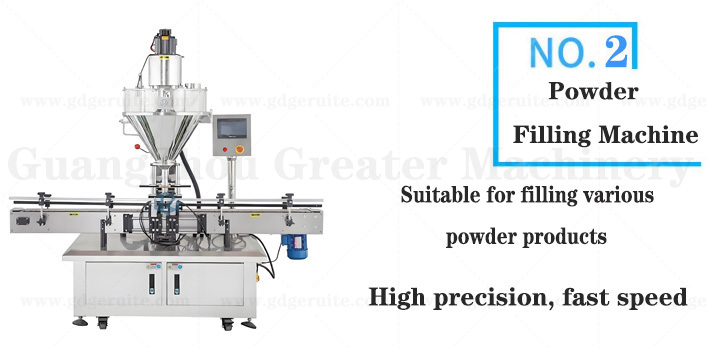

1. The powder head is a 30-50L material cylinder, driven by a servo motor, with high precision and fast speed.
2. Can be filled with single or multiple heads, customized according to production requirements.
3. Can replace screws of different specifications to adjust weight.
