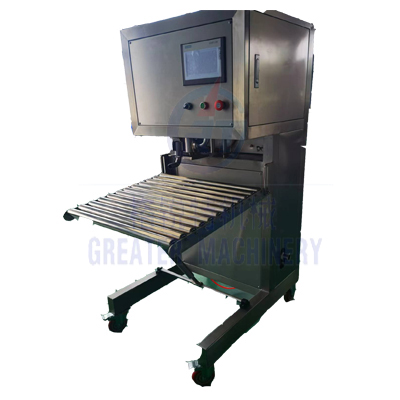

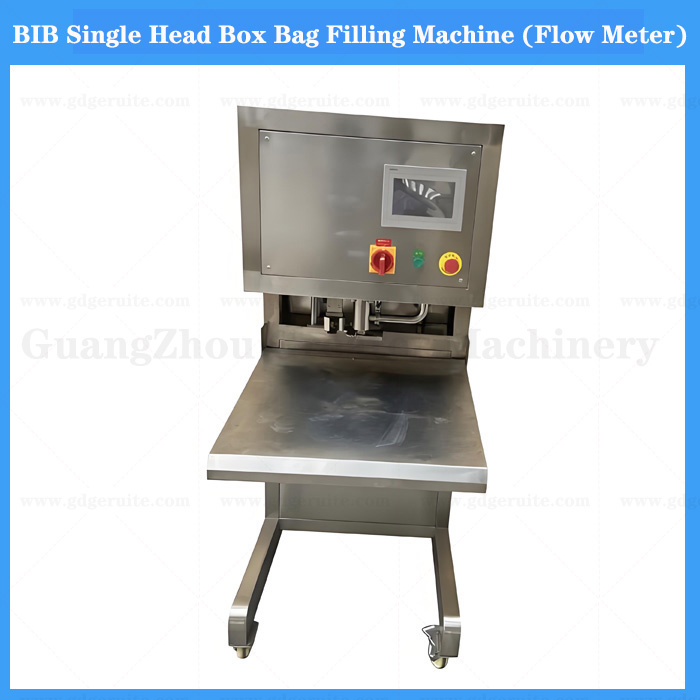

Name：Automatic single head box bag filling machine

一、 Product Introduction:
The single head BIB box bag filling machine is mainly suitable for filling products such as drinking water, red wine, grape wine, edible oil, egg liquid, etc.

Compared to the bottled series, it is easy to carry and cost-effective.

二、 Technical parameters:
Model: GRT-BIB-HZ
Filling range: 2L-30L
Filling accuracy: ± 0.5%
Filling speed: 240-280 bags/hour (when filling 3L)
Power: ≤ 0.40 KW
Liquid material inlet pressure: ≤ 0.3-0.35Mpa
Power supply voltage: AC220V/50-60Hz
Work pressure: 0.4-0.6 Mpa
Gas consumption: 0.2m3/min
Machine size: 710x1000x1500mm
三、 Local features:

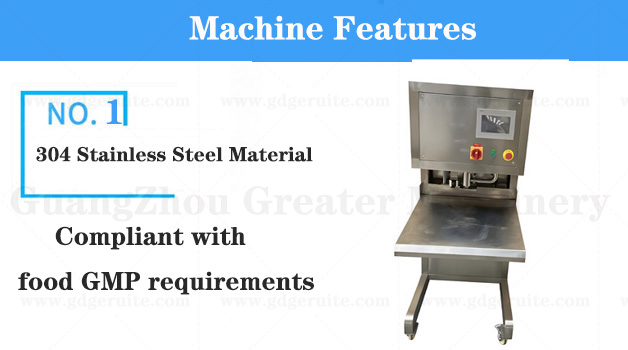

1. The overall material is made of 304 stainless steel, and the pipes in contact with the material are made of food grade plastic pipes, which are very easy to clean and meet the requirements of food hygiene permits.
2. This machine integrates automatic lid removal, vacuum pumping, quantitative filling, capping and other processes in one go, ensuring that the bag in the box is moved before capping after filling to prevent material overflow.
3. The measurement method adopts a flow meter.
4. PLC control system, human-machine touch screen interface, easy to operate at a glance.

5. This machine can vacuum the bags before filling to extend their shelf life. Nitrogen can be added after filling according to customer requirements.
