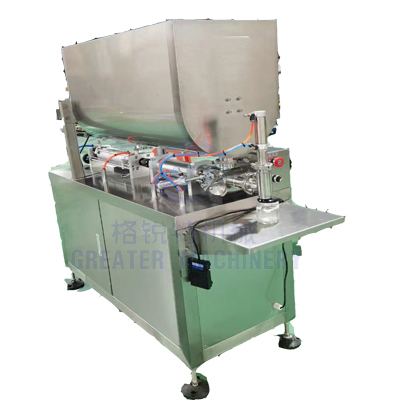

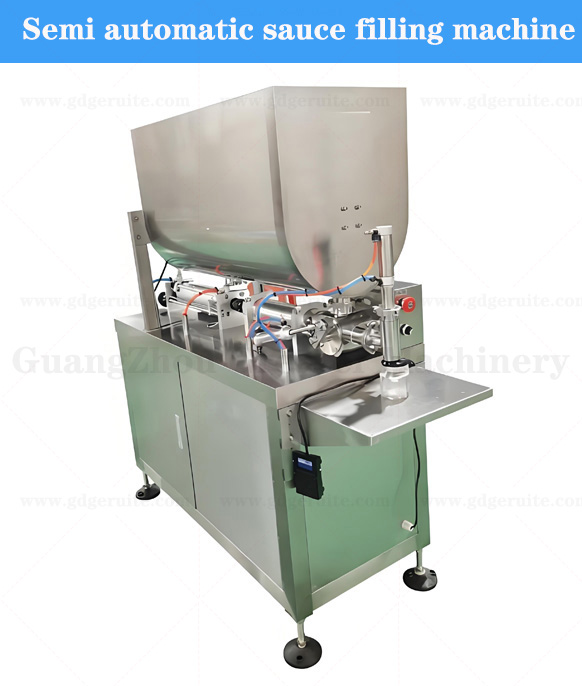

Name：Semi automatic horizontal liquid sauce filling machine

1、 Product Introduction:
The semi-automatic horizontal liquid sauce filling machine
belongs to single head liquid filling and piston filling equipment. Suitable for filling machinery in food, daily chemical, pharmaceutical, pesticide, and special industries.

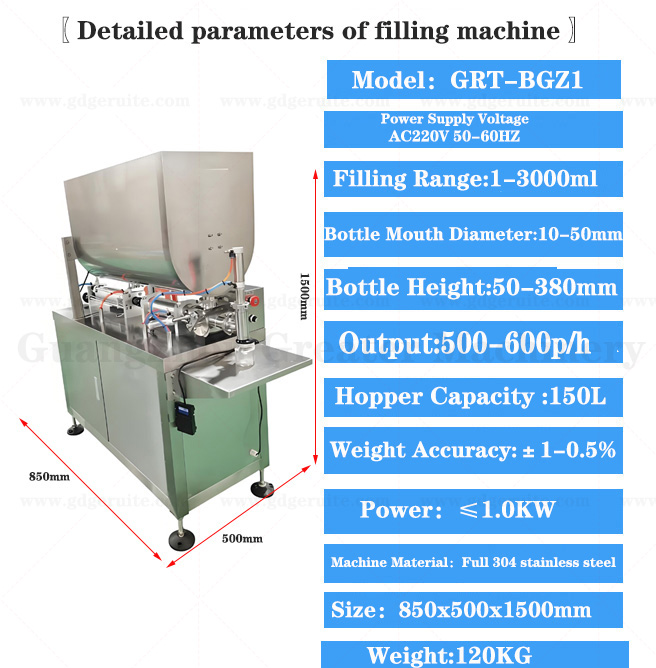

二、 Detailed parameters:
Voltage: 220/110V 50/60Hz
Power: 0.8KW
Rated air pressure: 0.4-0.6MPa
Filling speed: 10-30 bottles/minute
Filling accuracy: ± 1

Machine size：850x850x1200mm
Machine weight：80KG

三、 Local features:
1. This machine is driven by compressed air control and is suitable for use in environments with explosion-proof requirements and humidity, with high safety.
2. Due to the use of start-up control and mechanical positioning, the filling accuracy is high, and the accuracy can be controlled within 0.5%.
3. By using a screw and counter, the filling volume can be adjusted accurately and can be visually reflected in digital form
4. In case of emergency stop, simply press the emergency stop switch, and the piston will automatically return to its initial position, stopping the filling process
5. According to customer requirements, freely switch between "manual" and "automatic" filling states.
Vertical mixing heating and horizontal mixing heating can be customized according to requirements.、
