Name：Filling and capping machine

一、 Product Introduction:
The filling and capping machine integrates automatic bottle feeding, capping, capping, vacuum suction, capping, and bottle dispensing. It is mainly suitable for oral liquid, spray and other types of products.

2、 Technical parameters:
Production efficiency: 20-60 bottles/minute
Applicable bottle type range: bottle diameter 40-110 millimeters, bottle height 55-180 millimeters
Applicable cover type range: standard tinplate claw type unscrewing cover 38-82mm
Filling volume: 100-500ml (50-200ml)
Gas source pressure: 0.6-0.8mpa
Vacuum pressure: 0.06-0.07mpa
Power supply voltage: 220V/50HZ
Host power consumption: less than 100 watts
Net weight of machine: 200kg
Total machine power: 0.26kw
Vacuum pump: 380v/220v (power 3.5-5.5kw)
Pressure of gas storage tank: 0.06-0.09Mpa
Dimensions (length x width x height): 2000 x 850 x 1550 (mm)
三、 Product features:

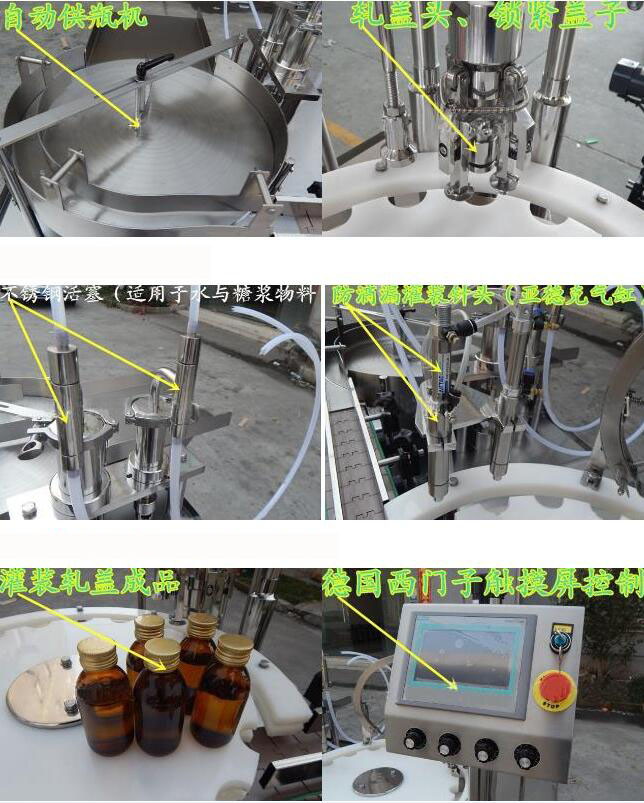

1. High degree of automation, mainly consisting of bottle conveying, capping, bottle clamping, capping, and filling.
2. Siemens PLC control system, large screen touch screen human-machine interface.
3. Peristaltic pump filling, swing mechanism internal plug, servo motor control, high precision.
4. Fast speed, high efficiency, simple and convenient operation.
5. Can cooperate with assembly line operations.
