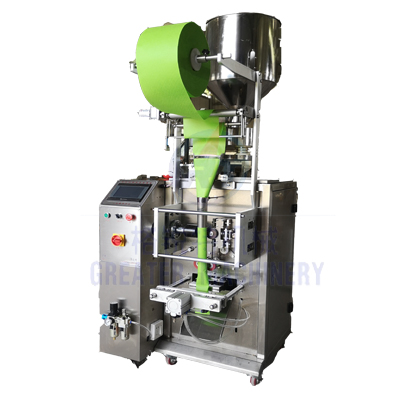

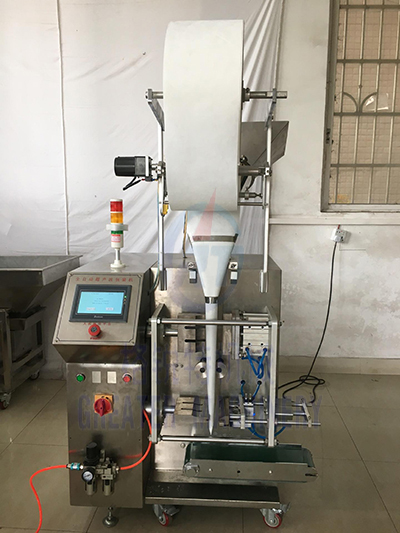

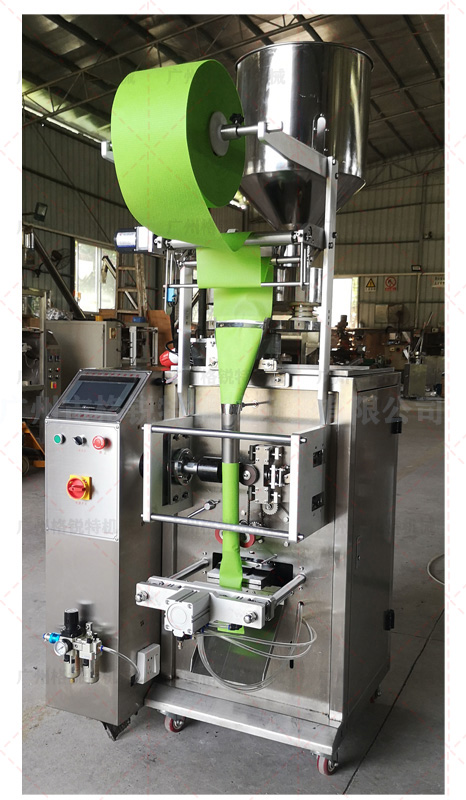

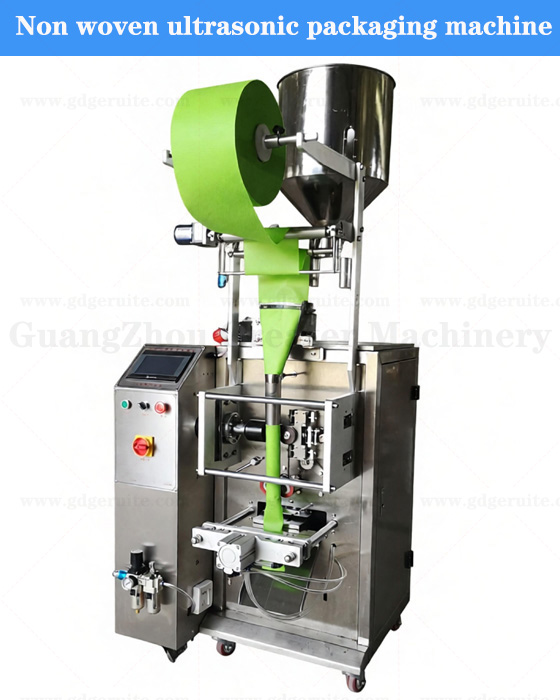

Name：Non woven ultrasonic packaging machine

一、 Product Introduction:
Mainly suitable for granular and powder products. For example, non-woven packaging for products such as activated carbon, bamboo charcoal, nano crystals, and heating powder.

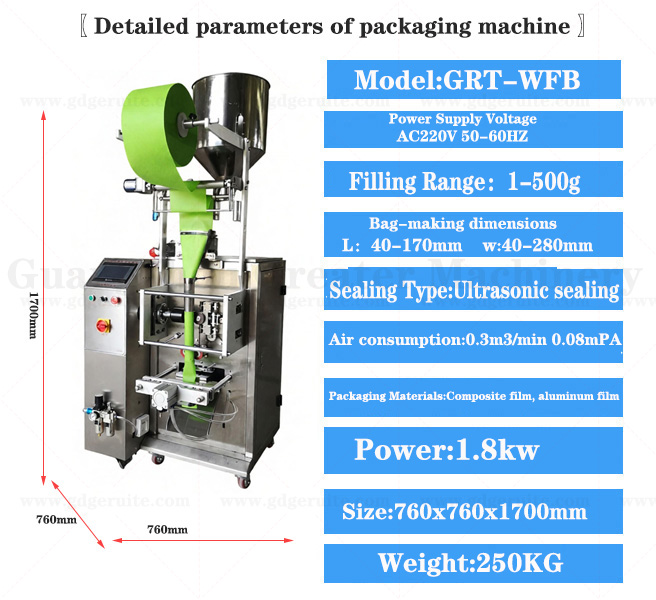

二、 Technical parameters;
Model: GRT-WFBF
Production capacity: 40-60 bags per minute
Measurement range: 1-100ml (screw replacement required)
Bag size: (L) 40-160 (W) 40-100mm
Sealing form: back sealing with three sides or four sides
Total power: 1.2KW
Power supply voltage: 380V/50Hz, 220V/50-60Hz
Packaging material: non-woven fabric
Cutting method: pneumatic pattern cutting blade, additional fixed package cutting function
Net weight: 187Kg
Dimensions: 980x850x1820mm

三、 Performance characteristics:
1. This machine adopts touch screen display and PLC system control, automatically completing bag making, measuring, filling, sealing, cutting, counting, and coding. It can also be customized according to customer requirements.
2. Intelligent photoelectric control device ensures the integrity of packaging and bag making patterns, and the bag pulling is controlled by a driving stepper motor and color code positioning.
3. Efficient ultrasonic welding bag making ensures firm and beautiful sealing quality.
4. The machine is made of stainless steel material and meets the food and drug hygiene licensing standards.
5. The packaging bag styles are divided into three side seals, four side seals, back seals, and circular bags.
