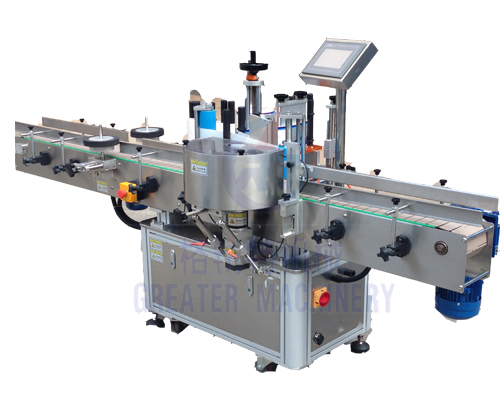

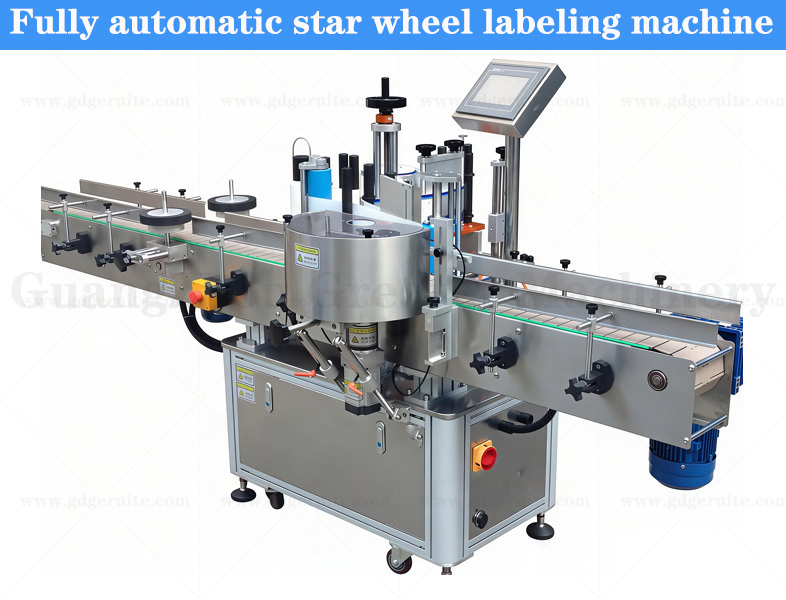

Name：High speed star wheel round bottle labeling machine

一、 Product Introduction:
Mainly used for labeling cylindrical circumference and half circumference products in industries such as daily chemical, food, and medicine.

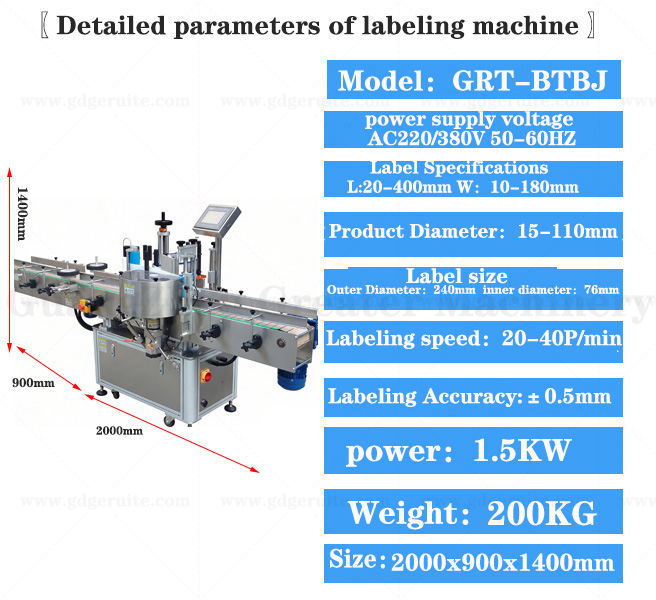

二、 Technical parameters:
Material size and diameter: Ø 28-110mm
Labeling speed 80-190 bottles/minute
Bottle height size: 100-400mm
Bottle mouth diameter: 100-400mm
Labeling machine accuracy ± 0.5mm
Belt width 91-260mm
Machine size: 2000x950x1600mm
Machine weight: 200KG

三、 Performance characteristics:

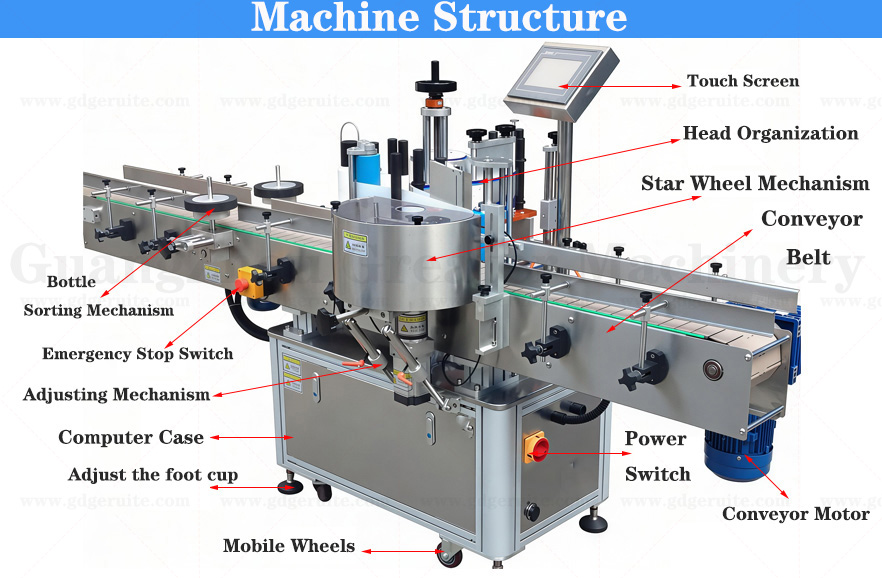

1. Three roller positioning circular bottle labeling, star wheel or cylinder structure.

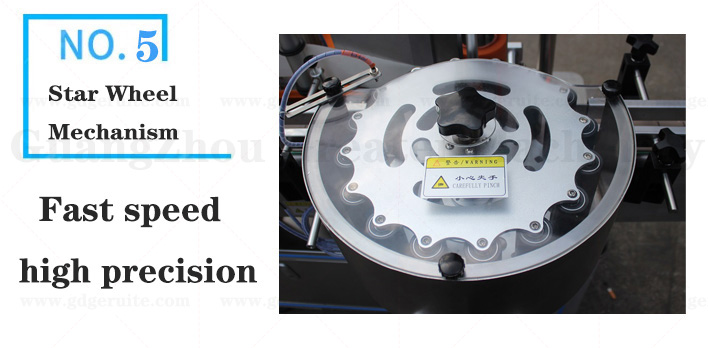

2. The high torque servo motor controls the star wheel structure to ensure the accuracy of the circular bottle label.
3. Siemens touch screen, human-machine interface, intuitive and convenient operation, powerful functions.
4. It can be operated independently or in conjunction with an assembly line.

Optional: Supporting equipment such as heat transfer coding machine, inkjet coding machine, etc.
