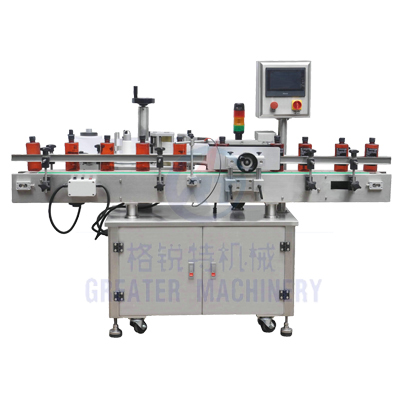

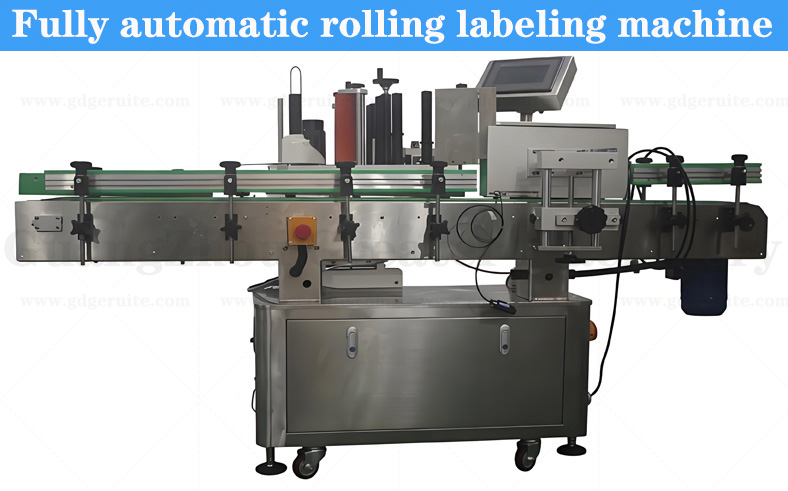

Name:Fully automatic rolling round bottle labeling machine

一、 Product Introduction:
Suitable for circular bottle labeling in industries such as food, medicine, cosmetics, and daily chemical products, it can be used for both full circle and circular labeling. An automatic rotary table bottle sorting machine can be optionally installed, which can be directly connected to the front-end production line to automatically feed bottles into the labeling machine, increasing efficiency.

二、 Technical parameters:
Model: GRT-Y801
Labeling accuracy: ± 1mm;
Labeling speed (pcs/min): 80-130pcs/min
Applicable product diameter and height: diameter: φ 25mm~φ 110mm height: 25mm~300mm
Applicable label size length: 20mm~290mm width (base paper width): 20mm~130mm;
Overall dimensions: approximately 1850 x 1200 x 1530mm (length x width x height);
Power supply voltage: 220V 50/60HZ;
Whole machine weight: approximately 200kg

三、 Features of fully automatic rolling round bottle labeling machine:

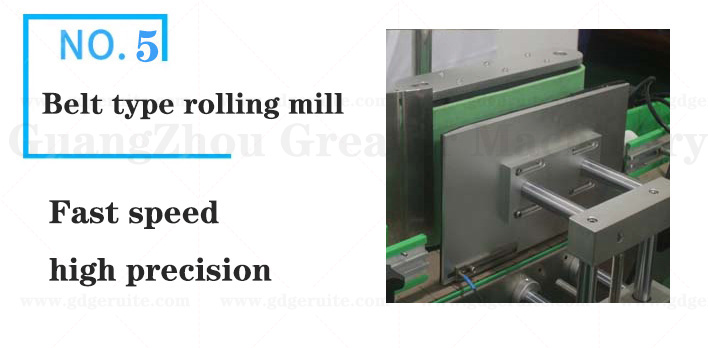

1. This machine uses elastic pressure coated sponge belt, with flat and wrinkle free labels, increasing labeling efficiency.
2. The machine is flexible in use, with bottle standing labeling, fast speed, and precise labeling. It has a bottle sorting function and can be used in conjunction with assembly lines or independently.
3. Siemens PLC system control, 7-inch touch screen display, photoelectric eye automatic control, no labeling if there is no object, fault prompt function.

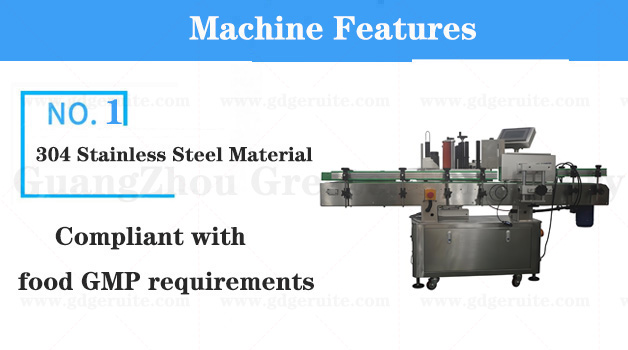

4. The whole machine is made of 304 stainless steel material, and the electrical components are all well-known brands.

5. The machine is easy to adjust, and the conveying speed, labeling speed, and bottle separation speed can be adjusted according to customer needs.
6. The header base boldly innovatively uses a degree of freedom adjustment mechanism, and adopts a three bar mechanical mechanism for height adjustment.

Optional coding machine/inkjet printer, automatic loading and unloading, receiving, and other labeling devices.
Implement real-time online printing of production dates, QR codes, production batch numbers, etc., to improve the efficiency of production enterprises.
