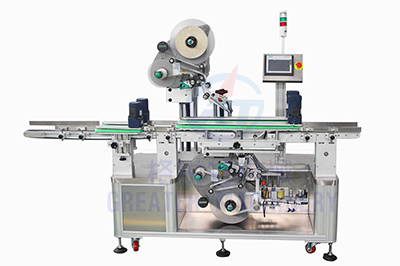

name：Fully automatic corner labeling machine

一、 Product Introduction:
Corner labeling machine is used for labeling at a 90 degree angle between the flat and side planes of a box,

providing anti disassembly function and suitable for industries such as printing, food, daily chemical, electronics, and medicine.

二、 Detailed parameters:
Labeling speed: 30-80p/min
Labeling accuracy: ± 1mm (excluding product and label errors)
Applicable product range: L * W * H: 80mm~300mm * 50mm~100mm * 15mm~100mm
Applicable label range: Width 20-150mm, Length 6-100mm
Working voltage: 220V 50Hz
Dimensions: L * W * H: 1700 × 650 × 1500 MM

三、 Performance characteristics:
1. High speed, the card corner labeling speed reaches 180 boxes/minute, greatly improving production efficiency;
2. The label is firmly attached and does not come off. On the flat part of the label, the roller rolls and covers the label firmly, and on the side flat part, the brush presses and adheres firmly;
3. High stability, equipped with a top pressing mechanism, high box conveying stability, and good labeling and overlay effects;
4. Intelligent control, automatic photoelectric tracking, with no labeling for anything, automatic calibration for no labeling, and automatic label detection functions to prevent missing labels and label waste.
