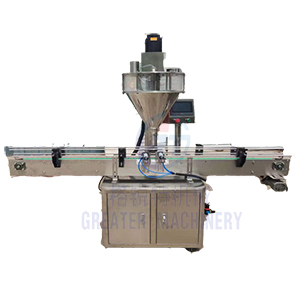

Name: Fully automatic powder filling machine

一、 Product Introduction:
Mainly used for automatic filling of various powders, granules, or powder granule mixtures in industries such as pharmaceuticals, food, chemicals, additives, and food.

二、 Technical parameters:
Model: GRT-801F
Measurement method: Spiral screw feeding
Packaging weight 1-200 grams (with spiral attachment)
Machine size; Cylindrical container with a diameter of 20-85 millimeters and a height of 10-150 millimeters
Filling accuracy: ± 1
Production speed: 30-50 bottles/minute
Power supply voltage: 220V/380V 50Hz
Whole machine power; 1.8KW
Compressed air: 6kg/cm2
Whole machine weight; 250 kilograms
Whole machine volume; 1000 × 720 × 1800 millimeters
Container capacity; 35 liters
三、 Performance characteristics:
1. Made of stainless steel material, the powder feeding device is easy to disassemble and clean.
2. Servo motor and servo drive control screw.
3. Servo controlled turntable works with stable performance.
4. PLC, touch screen, and weighing module control.
5. Equipped with a properly positioned height adjustment handwheel, it is convenient to adjust the height of the machine head.
6. Pneumatic tank support device ensures that every product on the assembly line is qualified, eliminating the need for sorting machines in subsequent processes.

7. Various product parameter adjustment formulas can be stored for future use, with many storing up to 10 formulas.
8. Replacing spiral attachments can adapt to various materials ranging from ultrafine powder to small particles.
Supporting equipment:
Leak proof centrifugal device, pneumatic valve device, dust removal device, vibration device, automatic feeding machine.
