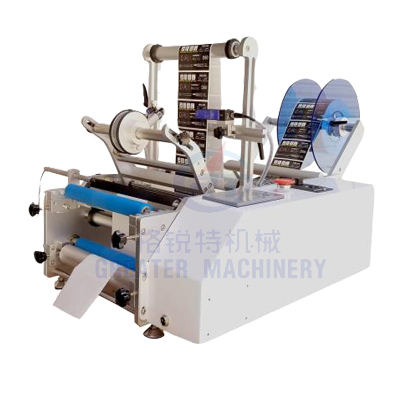

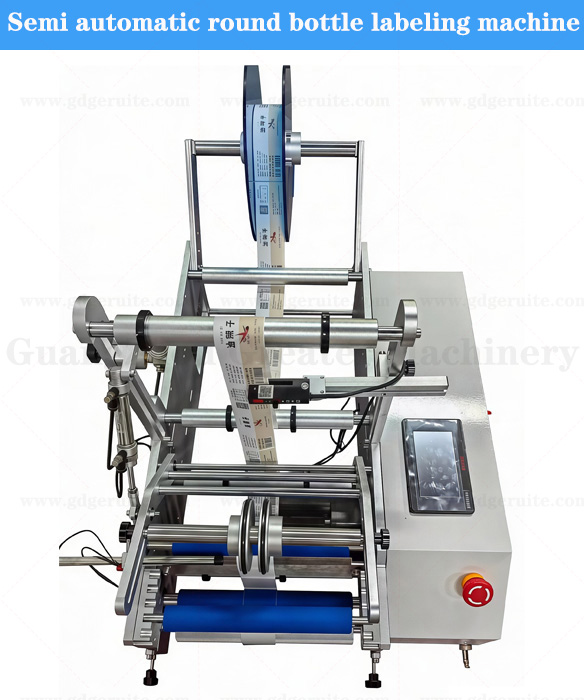

Semi automatic round bottle labeling machine

 一、Product Introduction:
The semi-automatic round bottle labeling machine is suitable for labeling cylindrical products of various specifications, small conical round bottles, such as red wine bottles, beverage bottles, round bottles, etc.

Half week/full week labeling, labeling on the front and back of the circumference, and adjustable labeling between the front and back.

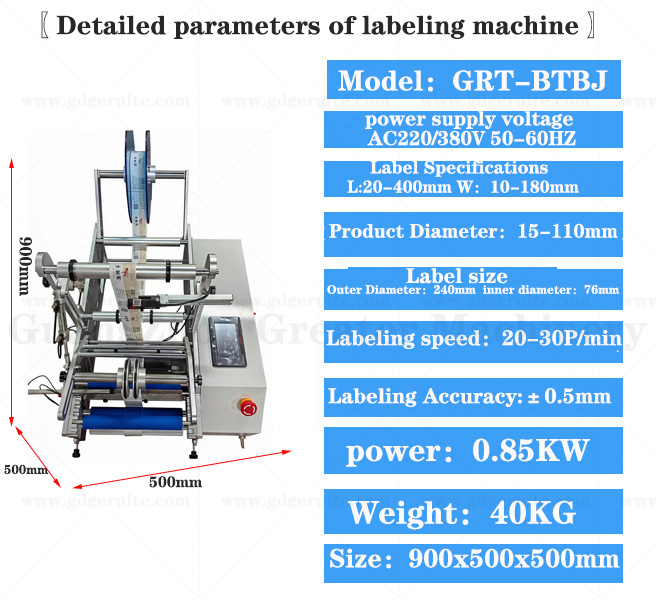

二、 Detailed parameters:
Label length (mm): 15mm~380mm
Label width (base paper width/mm): 10mm~180mm
Product diameter (for round bottles): 15mm to 160mm
◆ Outer diameter of standard roll (mm): φ 240mm
◆ Inner diameter of standard roll (mm): φ 76mm
Labeling accuracy (mm): ± 0.5mm
◆ Marking speed (m/min): 8m/min
Labeling speed (pcs/min): 20-40pcs/min
Weight (kg): Approximately 35kg

 Frequency (HZ): 50HZ
Voltage (V): 220V
Power (W): 200W
Machine size (mm) (length x width x height): 920mm x 420mm x 500mm

三、 Performance characteristics:

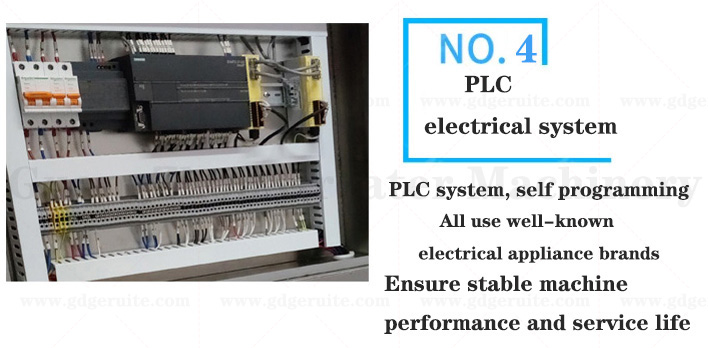

1. Adopting PLC control system and sensor electronic control system for stable equipment performance;
2. This machine has a simple structure, small footprint, and is a desktop product. At the same time, it also has a fault shutdown function, production counting function, and facilitates production scheduling;
3. Can add online coding function for configuration, printing production batch number and date while labeling, simplifying packaging process and improving efficiency.
