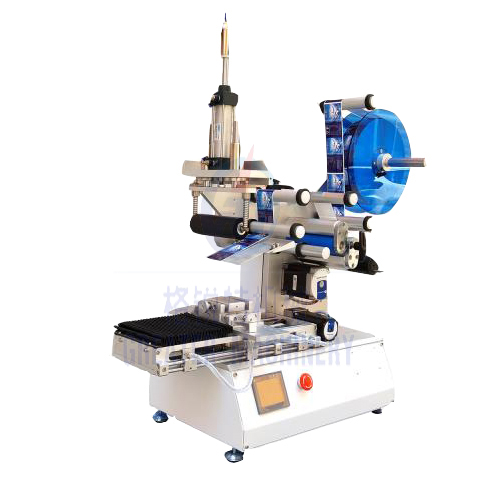

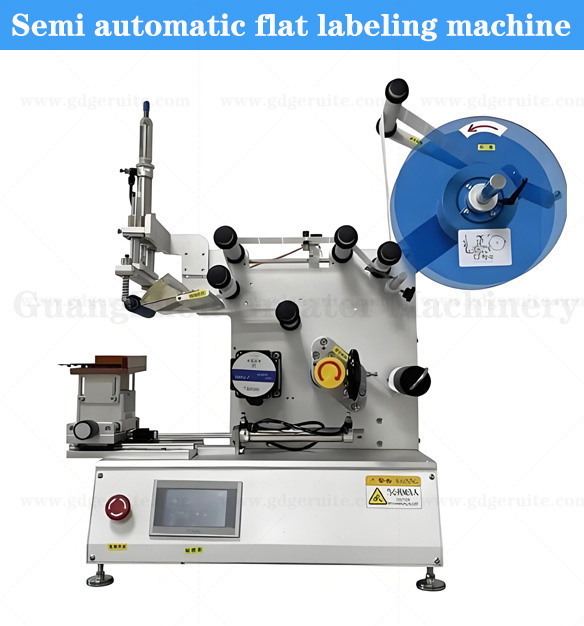

Semi automatic flat labeling machine

一、 Product Introduction:
Mainly suitable for labeling flat, concave, and curved surfaces in products, with a labeling accuracy of ± 0.2mm.

Such as plastic bottles, lighters, bottle caps, plastic shells, and other products.

二、 Technical parameters:
Labeling accuracy: ± 0.2mm;
Labeling speed: 20-40 bottles/minute (depending on product size);
Applicable product size: 20 ≤ length ≤ 200mm, 15 ≤ width ≤ 180mm;
Applicable label size: 20 ≤ length ≤ 100mm, 150 ≤ width ≤ 100mm;
Overall dimensions: 500 × 370 × 700mm (length × width × height);
Power supply voltage: 220V 50/60HZ;
Machine weight: 30kg

三、 Performance characteristics:
1. Desktop design, convenient to use, easy to move, and easy to operate.
2. It has two ways of labeling: automatic/semi-automatic, and workers can use sensors or foot pedals to control the labeling as needed.

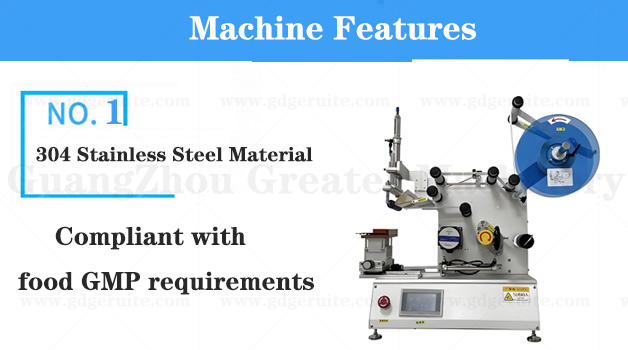

3. The equipment is made of stainless steel and aluminum alloy materials, and the overall structure is beautiful and elegant.
4. Using PLC program, sensor control system, stable performance.
5. Fault shutdown, production counting function, convenient for enterprises to arrange production.
6. The label is flat, without bubbles or wrinkles.
Optional heat transfer coding machine, inkjet coding machine, and positioning function. (Customized according to customer requirements)
