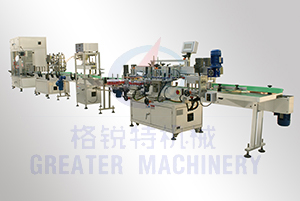

Liquid paste sauce filling production line

Product Introduction:
The filling production line is mainly suitable for the liquid filling production of engine oil, edible oil, thick sauce, and other industries such as medicine, food, and cosmetics.

Machine features:
1. Using Siemens PLC control system, the filling accuracy is high and the production efficiency is fast.
2. A fully automated production line consists of a 6-head piston filling machine, a bottom capping machine, a pinch screw capping machine, and an aluminum foil sealing unit.
3. The filling head uses anti drip and brushed filling heads to prevent the generation of bubbles. This ensures the positioning of the bottle mouth and the liquid level.
4. The material barrel automatically controls the feeding and adopts a pressurized design to increase the filling speed.
5. The whole machine is made of corrosion-resistant stainless steel material, and each pipeline is quick to install, making disassembly and cleaning more convenient.
6. Meanwhile, products can be customized according to customer requirements. The external unit is composed of a glass cover to ensure the cleanliness and hygiene of the machine.

6-head piston filling machine (technical parameters)
Number of filling heads: 6
Filling capacity: 1-4L
Theoretical filling speed: 1000-2000 bottles/minute
Filling accuracy: ± 1 milliliter (1 liter)
Conveyor speed: 5-16 meters per minute
Belt width: 118 millimeters
Conveyor Belt: Saigang Chain Belt
Ground clearance height of conveyor belt: 740mm ± 30mm
Whole machine power: 1100W/220V
Valve material: 304 stainless steel
Drive motor: 380W variable frequency speed regulation
Bucket capacity: 100L
Workbench width: 20 centimeters
Gas source: 0.5-0.8MPa
