W type double cone mixer

一、 Product Introduction:

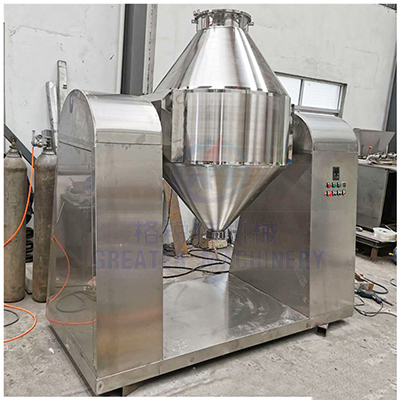

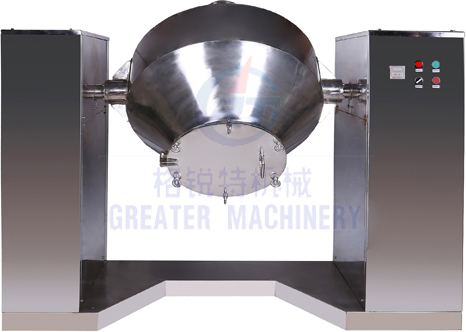

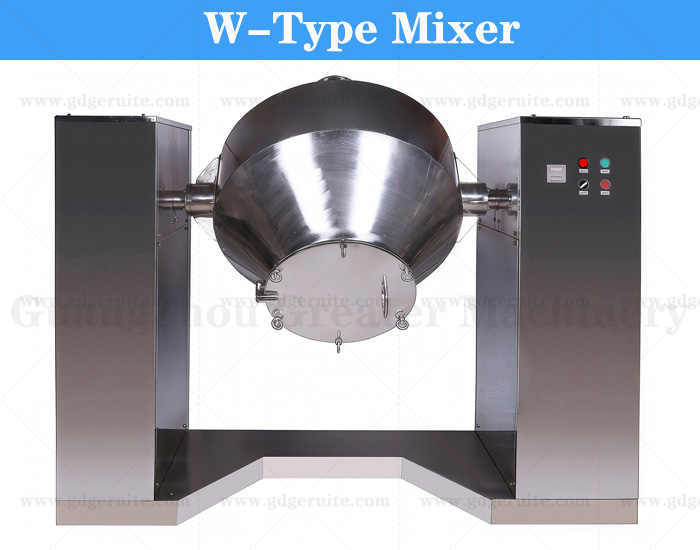

The W-type double cone mixer
is used for mixing feed, food, pesticides, dyes, pigments, plastics, resins, chemical raw materials, seasonings, cosmetics, medical products, and various powder additives, and can be applied to powder mixing with trace amounts of liquid added.、

二、Technical parameters:

Model	Production/ KG	Volume L	Mixing time min	KW	RPM	Size mm	Weght
W-300	60-100	0.3	6-10	1.3	12	1685x800x1850	200KG
W-500	100-200	0.5	6-10	2.2	12	1910x800x1940	220kg
W-1000	200-400	1	6-10	4	12	2700x1000x2370	250kg
W-1500	300-500	1.5	6-10	4	12	2900x1000x2600	280kg
W-2000	400-800	2	6-10	7.5	12	3200x1300x3200	300kg
W-2500	500-1000	2.5	6-10	7.5	12	3386x1900x3380	350kg
W-3000	600-1200	3	6-10	11	12	4450x2200x3600	360kg

三、、 Performance characteristics;
1. Adopting internal and external rotary stirring, with high uniformity.
2. The mixing bucket can be tilted at any angle for easy discharge and cleaning needs.
3. Equipped with an automatic timing device that can automatically stop from 0 to 60 minutes.
4. The W-double cone mixer adopts a stainless steel butterfly valve for discharging, with no dust leakage or flying
5. By using the principle of gravity diffusion for mixing, the pressure feedback on the material is small, and there will be no shear crushing of the material.
6. The cylinder is made of high-quality stainless steel, and both the inner and outer walls are polished. The mixing process is pollution-free, with low power consumption and easy cleaning.
